Bladder Specifications

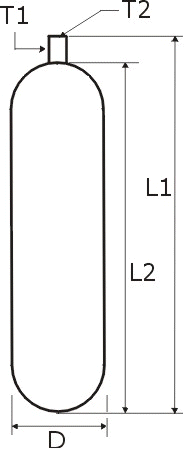

SIZE D L1 L2 T1 T2 bladerspec.jpg (11689 bytes)
1 QUART 3.8 7.0 5.8 5/8-18 0.305-32
1 GALLON 5.5 9.7 8.0 7/8-14 0.305-32
2.5 GALLON 8.0 13.0 11.5 7/8-14 3/8-24
5 GALLON 8.0 24.6 23.0 7/8-14 3/8-24
10 GALLON 8.0 45.0 43.5 7/8-14 3/8-24
11 GALLON 8.0 51.0 49.5 7/8-14 3/8-24
15 GALLON 8.0 65.4 64.0 7/8-14 3/8-24

Notes:

  • 2.5-15 gallon valve stems shown, 1 quart & 1 gallon valve stems are one piece (not shown).

  • "L1" dimensions do not include 5/8" gas adapter length.

  • Gas Port threads are shown under "T2".
